Available configurations
Specifications chosen for the rider.
Rider weight, total load, terrain, hills, expected distance, and model style all help determine the right motor and battery system.
Discuss your requirements
Current specification choices
| 24-inch wheels | 48V 1000W or 48V 1500W configurations |
|---|---|
| 26-inch wheels | 48V 1000W or 48V 1500W configurations |
| 60-volt systems | 24-inch or 26-inch wheels with 1500W configuration |
| 48V lithium batteries | 26Ah, 35Ah, or 44Ah |
| 60V lithium batteries | 30Ah or 45Ah |
| Front tire | Heavy-duty e-bike tire with thorn-resistant tube |

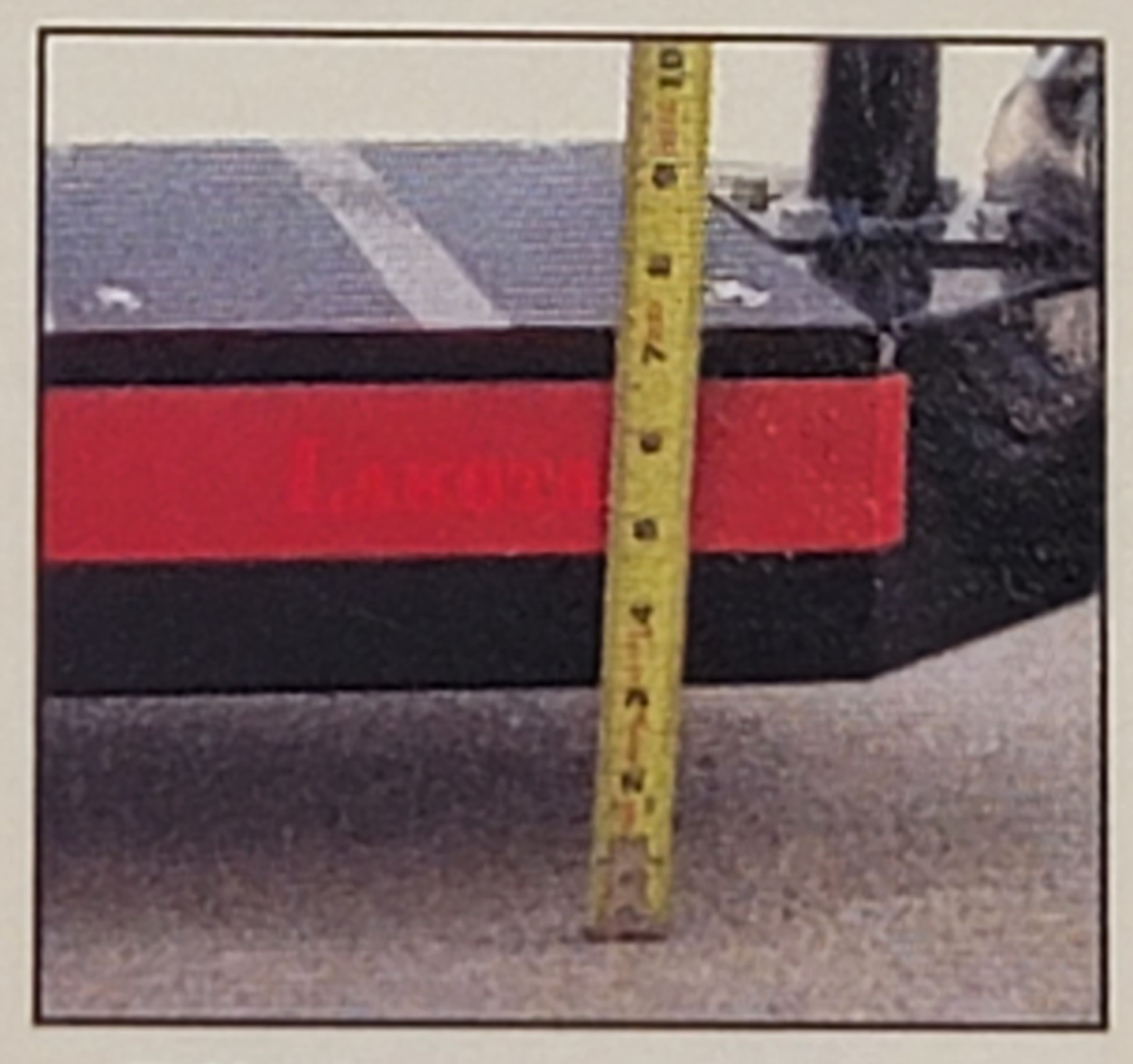

| Step-on height | Approximately 7 inches, compared with approximately 20 inches on a traditional bicycle frame |
Why the configuration matters
Wheel size, motor output, battery capacity, and drive position are not selected from one universal formula. A rider on level roads has different requirements from a loaded wheelchair model used in hill country.
- Rider and passenger weight
- Wheelchair and equipment weight
- Flat roads versus hills
- Typical riding distance
- Desired controls and seating
Specifications represent available examples from the original R & M information. Final equipment, performance, range, charging time, dimensions, and capacity must be confirmed for the individual build.

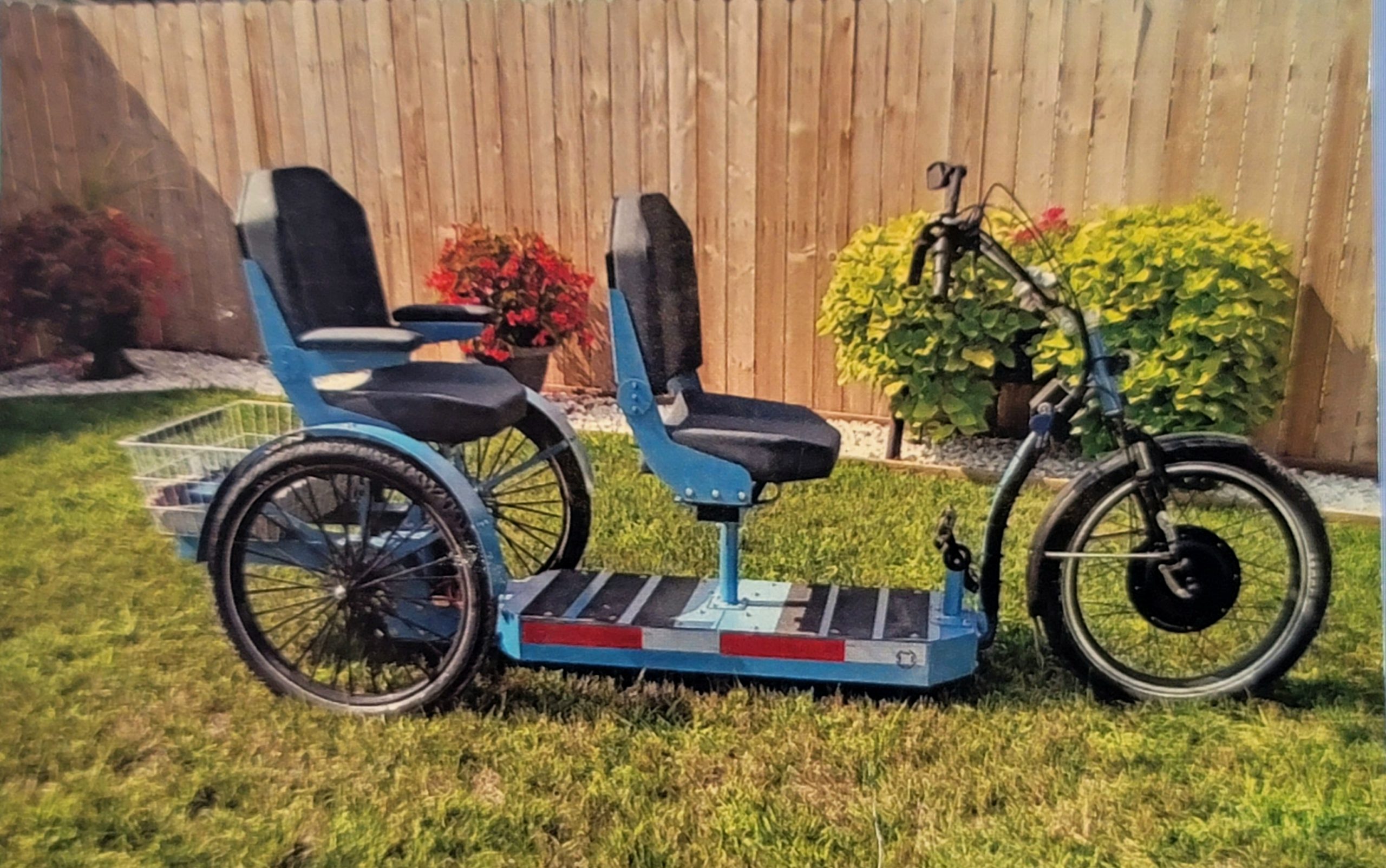

Comfort begins with easier entry
The low platform removes the tall center frame and high pedals that can make traditional bicycles difficult to mount.
